SLHY powder feed mixer

SLHY0.4 horizontal mixer is suitable for feed, paint, dry powder, chemicals and etc, is used to mix in various proportions metered powder, also equipped with feed production line for medium small breeding factory. The machine is made up of c

SLHY powder feed mixer



Model SLHY0.125 SLHY0.25 SLHY0.4 SLHY0.6 SLHY1 SLHY2 SLHY4
Transmission Type Reducer Motor Reducer Motor Reducer Motor Reducer Motor Reducer Motor Reducer Motor Reducer Motor
Power(kw) 1.5 1.5 1.5 2.2 7.5 15 30
Machine Dimension(mm) 1300*
500*1000
1600*
600*1100
1900*
700*1200
2200*
800*1300
2300*
1000*1900
2700*
1150*2100
3150*
3040*2400
Capacity(kg/batch) 50 100 150 250 500 1000 2000
Mixing Uniformity CV (%) ≤7 ≤7 ≤7 ≤7 ≤7 ≤7 ≤7
Mixing Time 3-6min 3-6min 3-6min 6min 6min 6min 6min

If your raw materials are special, please inform us, we will customize appropriate programs. And if high temperature, high pressure, flammable, explosive, corrosive and other conditions, you must provide detailed date, and we will customize right model.

If you have any questions, please contact us without hesitate, and we will solve your problems as soon as possible.

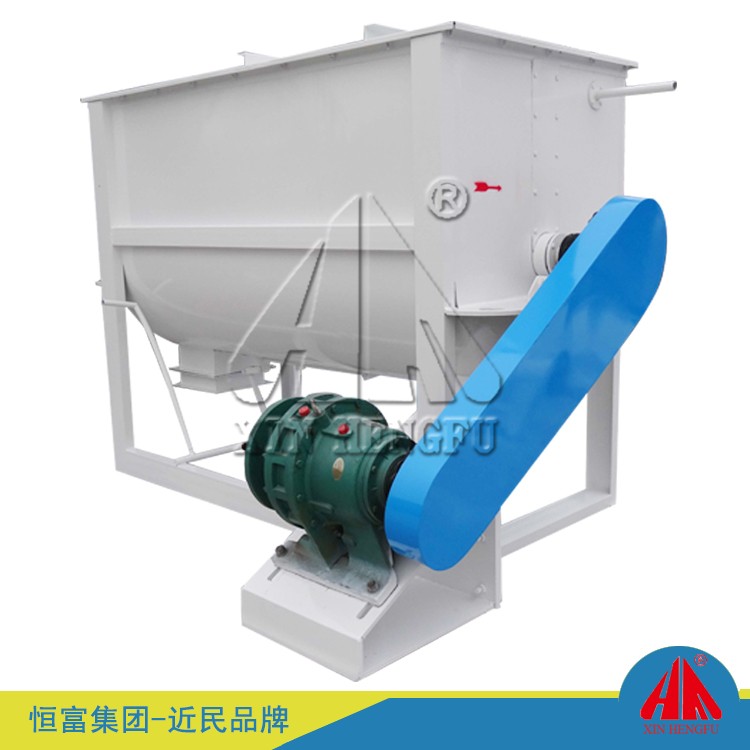

Product Description of powder ribbon mixer

This powder ribbon mixer is mainly composed of the body, rotor, transmission and control parts.

Uses:

This powder ribbon mixer is suitable for mixing powdered or granular materials. Mainly used for feed mills, chemical industry, dry mortar industry, food industry and so on.

Features:

Mixing moderate and high uniformity, mixing uniformity CV≤7%, no segregation.

Short mixing cycle(180-240s), large open layout, a quick feed, a small amount of residue.

Atomizing nozzle configuration stainless steel, to meet the needs of adding the liquid.

Working Principles:
Single shaft double screw mixer rotor is consist of two aspects pivot near the band or spiral, whose stirring time is short, strong stirring, high yield and high mixing uniformity, and it is ideal equipment for feed, dry powder and compound fertilizer factory.
The machine includes lid, rotor, casing, discharging device and other parts. Raw materials are premix materials are put into mixing room from upper inlet, rotor driven by reducer motor and composed of different directions ribbon screw blade and main shaft. When rotor working, left hand helix and right hand helix will make materials push in the opposite direction so that the materials can be mixed uniformly.
Mixer main shaft speed is 34r/min
CV is 7%, mixing time is 4-6mins

Discharging time is 5-10mins




Xinxiang Hengfu Electronic Machinery main products are premix feed plant, complete feed production line, concentrated feed production line, various feed plants and etc, Our company is specialized in premix feed plant, concentrated feed production line and different kinds of feed production lines, which is approved by many customers. Quality first and the credibility of the supremacy are our management principle, we are certain to provide superior service for you. If you have any needs, welcome contact me without hesitate.
