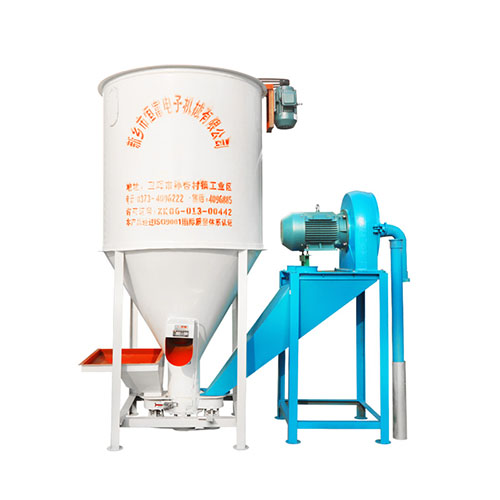

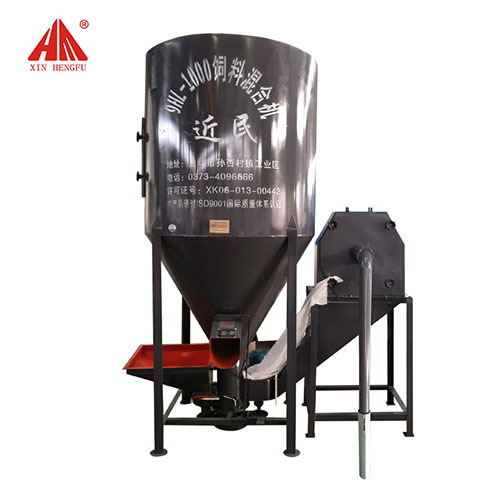

9HT vertical type grinder mixer

Characristic : This mixer machine posses lower consption,less area of occupancy,easily to loading and discharging,but long mixing time,it has residual quality in the end os the bottom,generally used for small feed factory and complete feedi

9HT vertical type grinder mixer

Characristic :

This mixer machine posses lower consption,less area of occupancy,easily to loading and discharging,but long mixing time,it has residual quality in the end os the bottom,generally used for small feed factory and complete feeding line.each batch of feed mixing need 15min.



Specifacation :

1.This kind of machine put the grinder underside, live link, reasonable process, compact instructure,very suitable for medium-sized cultivation companies and small-scale aquaculture feed processing plants.

 2.From top to see the material poured the conic section to be promoted, so many times a cycle. stirring will be made for the door open, the mixture was unloaded. the mix of material. it takes about 15min.

3.Low Power consumption, occupy space and for loading and unloading, but a long time and place of back base  footprint, usually used for food and food processing plant in the crew.



Technical data

 Model

Power(KW)

Capacity

(kg/h )

Measurement(mm)

Diameter and

Height

weight

(kg)

Volume

(cbm)

Mixing time

(min/batch)

CV

Drive

mode

Crusher

 Power

Mixer
Power

9HT500

3

3

500

¢1000*2300

350

0.5

20-30

≤13%

belt

9HT750

7.5

3

500-750

¢1000*2300

450

0.5

20-30

≤13%

belt

9HT1500

11

3

1000-1500

¢1260*2350

620

1

20-30

≤13%

belt
