electric cabinet

Cabinet is also known as electric control cabinet in industry.Its made of steel material and used to protecting normal operation components,also control center of feed production line and an important device to realize the automation of fee

electric cabinet

Cabinet is also known as electric control cabinet in industry.It’s made of steel material and used to protecting normal operation components,also control center of feed production line and an important device to realize the automation of feed production.
Material selection
Electric cabinet can be both made of hot-rolled steel plate and cold-rolled one,by comparison,cold-rolled steel plate is much softer than hot-rolled one,more suitable for the production of electric cabinet.
Main structure

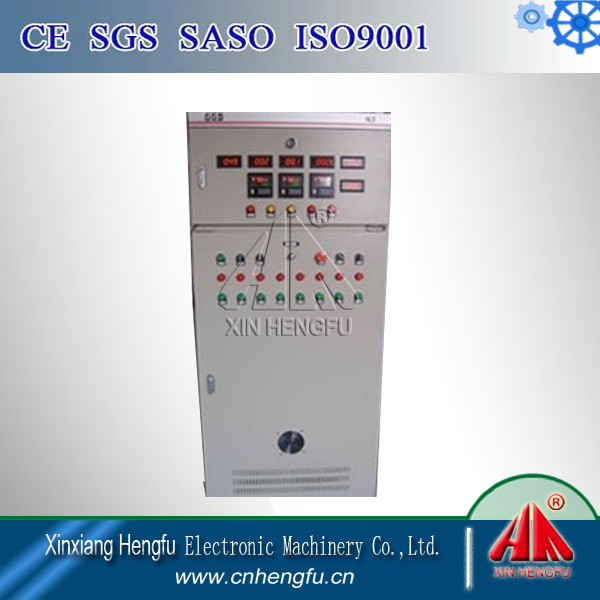

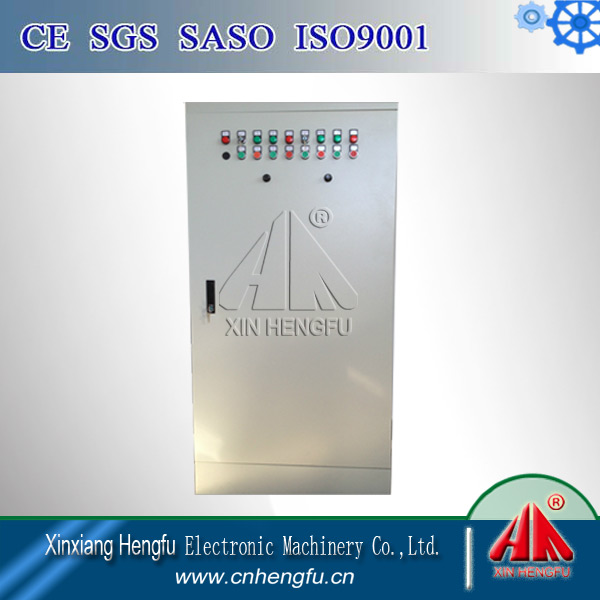

You can refer to the actual picture of cabinet, in addition to underway electric control cabinet, Xinxiang Hengfu Electronical Machinery Co., Ltd can provide all kinds of feed processing industry tailored control cabinet, mainly including strong and weak electricity control cabinet and a variety of stand-alone control cabinet.
Performance advantage
1, Cabinet can be installed in voltmeter, ammeter, indicator and a variety of operating buttons.
2, Equipment in the box use bar type installation structure, it’s flexible and compact, easy maintenance.
3, Strong electricity control cabinet has modular assemble electric cabinet, GGD control cabinet, PLC control cabinet and other forms.Weak electricity cabinets import PVC material production process simulation screen,which can clearly reflect operation process and help to monitor.
4, The use of control methods combination analog screen central control system and computer control ingredients.
5, The power box is air closed type,shell is generally welded with steel plate, but also can be assembled from the profiles.
6, Right and left side wall of the box is welded with an electrical installation column, the knife switch operation handle is installed on the right side of the box door, as a switching power supply.


1,Ambient temperature
Ambient air does not exceed 40 degrees,a minimum of not less than 10 degrees below zero, and the average temperature within 24 hours can’t exceed more than 35 degrees.
2,Atmospheric conditions
Relative humidity in the maximum temperature of 40 degrees is not more than 50%,when the low temperature allowing a higher humidity.
3,Without conductive dust,it may cause metal corrosion and damage to insulation gas place.
4,No violent vibration and bump, it should be installed vertically,the inclination shall not exceed 5 degrees.
5,Altitude of not more than 2000 meters.
