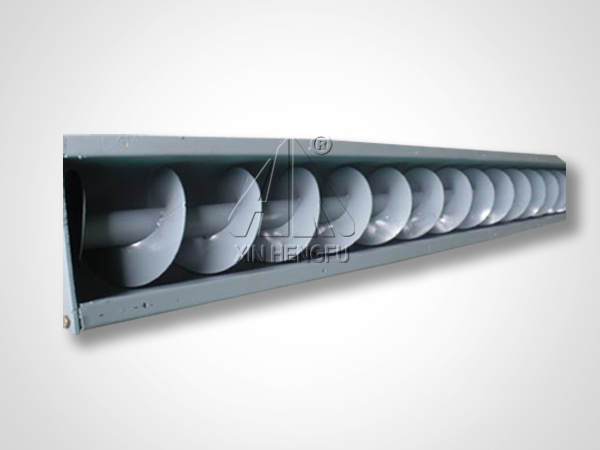

Screw conveyer

Screw conveyer
Features:
1. The screw conveyer is employing good-quality steel pipe, the whole steel performance is nice.
2. Screw conveyer is used to transport cement, sand, dust, lime, grain and other materials.
3. The screw conveyer is widely used in flour, grain, cement, fertilizer, sand, coal powder and other small lumpy bulk materials.
4. Strong adaptability, this machine is suitable for the conveying of scattered materials, particles, blocks which is not sticky, especially for large blocks, materials with sharp corners, scorching material conveying, and in the course of transmission, cooling and washing is finished.

Screw conveyor working principle of  Xinhengfu Brand powder screw conveyor used for feed plant

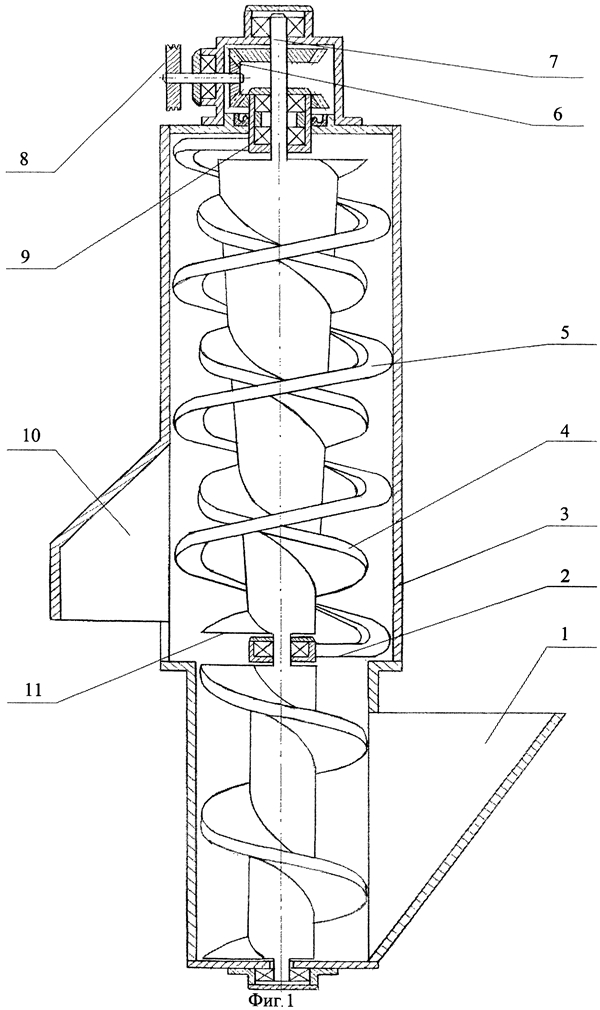

Screw conveyor in the cylindrical casing is welded with a continuous helical blade, the casing rotates together with the helical vane. Added materials due to centrifugal force and friction force random shell rotates together and lifted after he slipped along the spiral surface gravity of materials, so that the material is rotated together with the solenoid enabling the material to move forward, as does not rotate rotation of the nut along the screw for translational motion as to achieve the purpose of conveying the material.

Product advantages and features of  Xinhengfu Brand powder screw conveyor used for feed plant :
The machines low energy consumption, low maintenance costs; at the end of feed, can adapt to uneven feed requirements can be transported simultaneously mixing and other process requirements, it does not produce jamming when the material into excessive; easy multi-point loading and unloading, can deliver high temperature materials. Suitable for horizontal conveying high-temperature materials; high temperature, feeding uneven, there is shatterproof requirements, pollution prevention requirements of materials and need multi-point plus unloading process has better adaptability. Practice has proved that, in the transport of cement clinker, dry limestone, phosphate rock, ilmenite flour, coal and slag and other materials with good results.

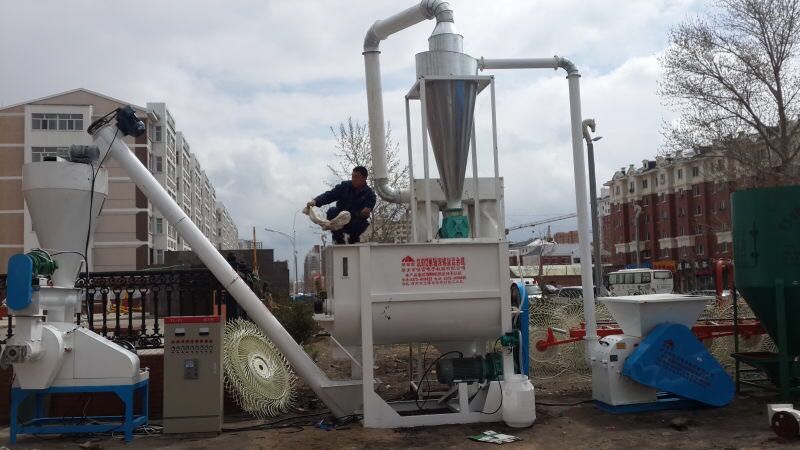

Screw conveyor used in animal feed plant:








Contact us
What's your raw material,capacity,lifting height?

Screw Conveyor Main technical parameters:

Screw Conveyor is used to transport cement, sand, dust, lime, grain and other materials.
Screw machine is widely used in various industries, such as feed, building materials, chemicals, power, metallurgy, coal charcoal, food and other industries, for horizontal or inclined conveying powder, granular and small block materials, such as coal, ash, slag, cement , grain and other material temperature less than 200 ℃. Screw machine suitable for transporting perishable viscous, easy caking materials. In concrete mixing station, the role of screw conveyor has been the greatest expression.
