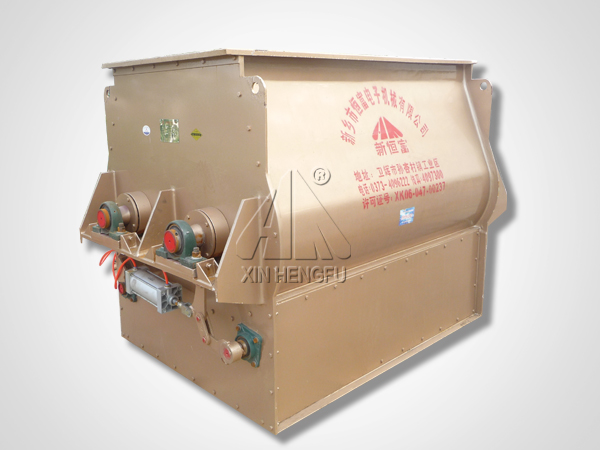

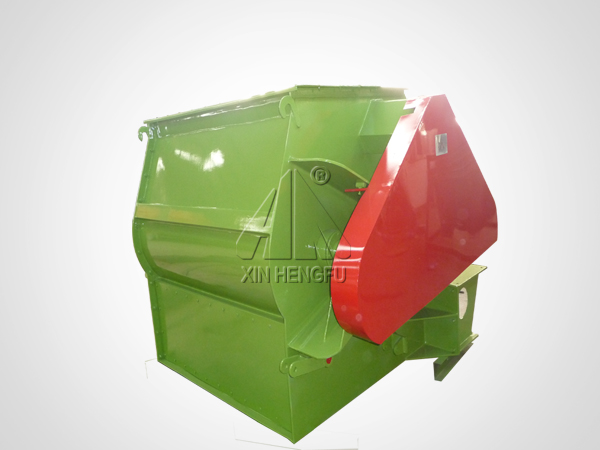

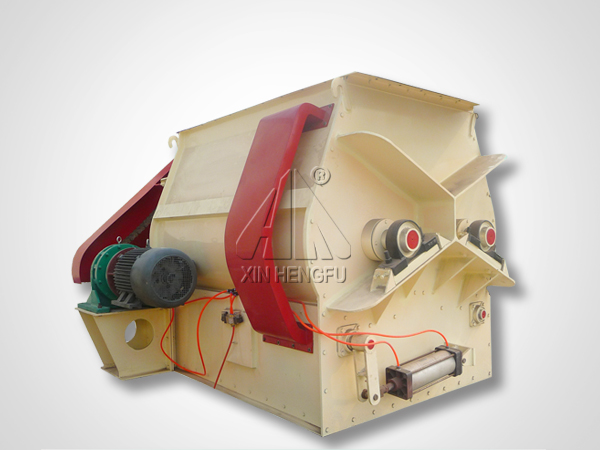

Double Shaft Paddle Mixer

1.Double shaft paddle mixer is widely applied to feed, premix, enrichment, chemical, food and pharmaceutical industries.
    2. Mixed –speed, mixed-short (60-120s), unloaded at the end of open-nesting, the low rate of residual material.
    3. stir moderately, mixing uniformity CV≤5%,and do not have segregation.
    4. Flexible body to open the door, the door-sealing, to ensure that materials are not leaking.
    5. Equipped with two sets of stainless steel systems and add liquid atomization nozzle, to meet the needs of adding the liquid nutrients.
    6. According to the needs of users, configure the compressed air injection system to minimize the level of residues.

Model	SSHJ0.5	SSHJ1	SSHJ2	SSHJ4	SSHJ7
Transmission Type	Chain drive	Chain drive	Chain drive	Chain drive	Chain drive
Power(kw)	5.5	11	18.5	30	45
Machine dimensions(mm)	190017001250	240019001500	250023001800	327527202155	346931102410
Capacity(t/batch)	0.25	0.5	1	2	3
Mixing uniformity CV (%)	≤5	≤5	≤5	≤5	≤5
Mixing time	0.5-2min	0.5-2min	0.5-2min	0.5-2min	0.5-2min
Weight (kg)	1280	2150	3175	5960	8780

Double Shaft Paddle Mixer is Widely applied to feed, premix, enrichment, chemical, food and pharmaceutical industries
